EMOTIVE COLOR MATRIX

COMPUTED POWERGRADE

Emotive Color includes a special extraction of each light source color conversion to a computed Powergrade, called Matrix. Color in its most minimalist form, Matrix features three compound matrices, a gamma curve, and correctives to define LogC, followed by Arri Rec.709.

PRECISION LOGC

The matrices are calculated from hundreds of individual matrix operations on the same sample group as the interpolated conversion, to extract the most universal 3x3 matrix conforms common to the entirety of the sampled space (the 3D 'thread' that runs through them all).

DIRECT FROM THE ENGINE

The Resolve RGB Mixer restricts values entered in the user interface (to large quantized .01 steps, with two decimal places of precision). This prevents entry of precise 3x3 matrices, limiting its practicality for precision color conversion.

To overcome this limitation, the initial Matrix Powergrade .drx is printed directly from the Emotive Color Engine. This allows precise floating point values to be injected into Resolve's RGB Mixer, to six decimal places of precision under the hood.

...
DUAL LIGHTS

Each powergrade is light source specific, to realize higher accuracy for both ends of the white balance spectrum.

...

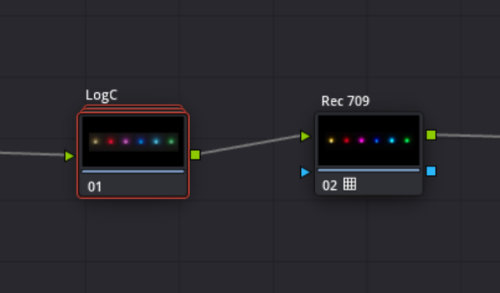

MODULARITY

Each component that comprises LogC is modifiable to allow tweaking of the transform to your taste.

...
EFFICIENCY

Achieved in as few nodes as possible. This minimalist approach allows lower computational overhead.

CLEAN COLOR

As with the primary interpolated cubes, Matrix powergrade LogC is fully non-destructive, even into theoretical gamut beyond LogC (the gamut performance of both is shown below).

To test your own workflow for non-destructive color, download the Gradient Test chart here:

Download Gradient Test

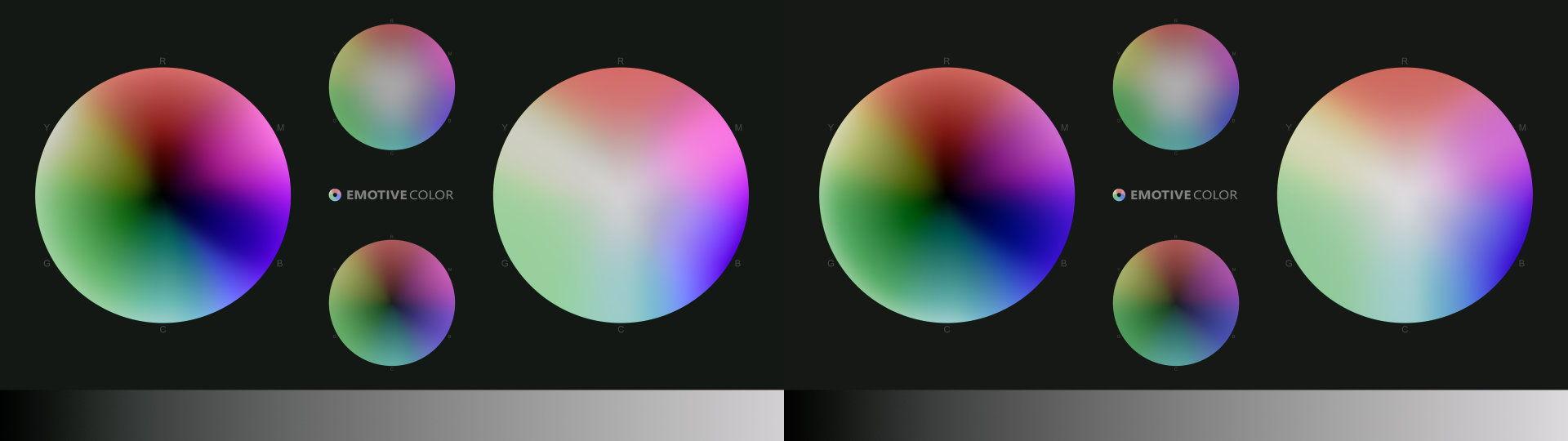

Matrix LogC and Interpolated LogC

GENERATION COLOR SCIENCE

For Blackmagic Cameras, the new Generation 5 color science is now supported by the Matrix PowerGrades and interpolated cubes (for Bmpcc 4K, 6K, & Ursa). Generations 4 and 5 are supported with two separate file sets that conform each color science to a universal measured LogC.

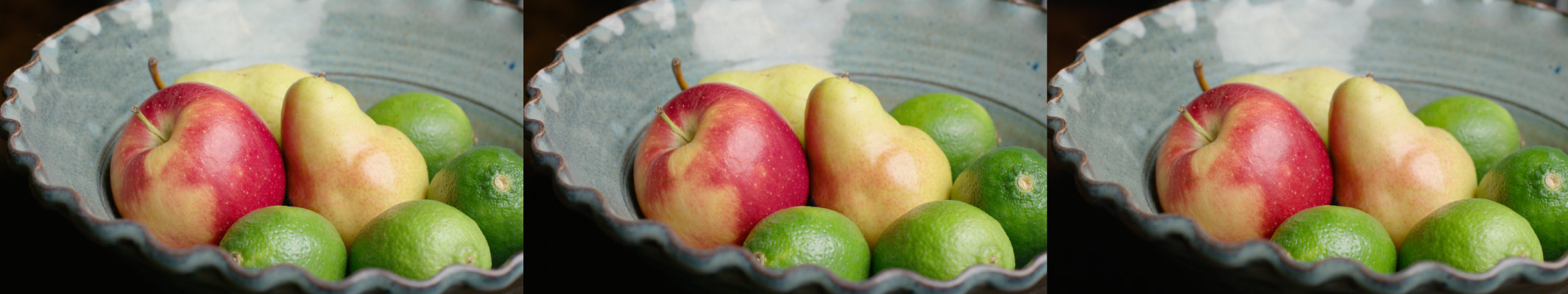

Ursa Tungsten Gen 4, Gen 5, and Alexa

MATRIX PDF

LATEST REVISION 7.27.20

Download
